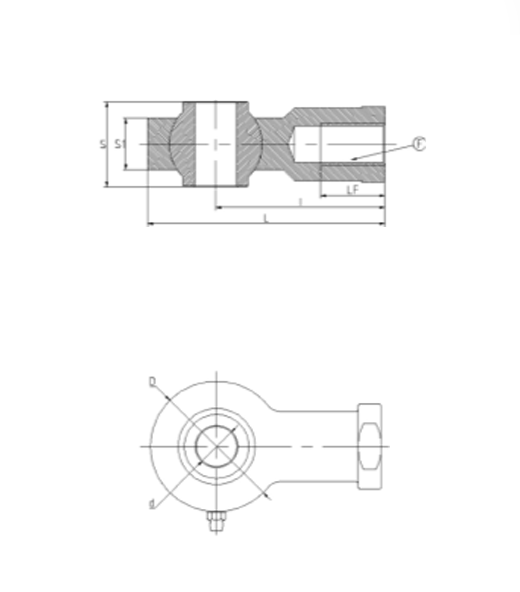

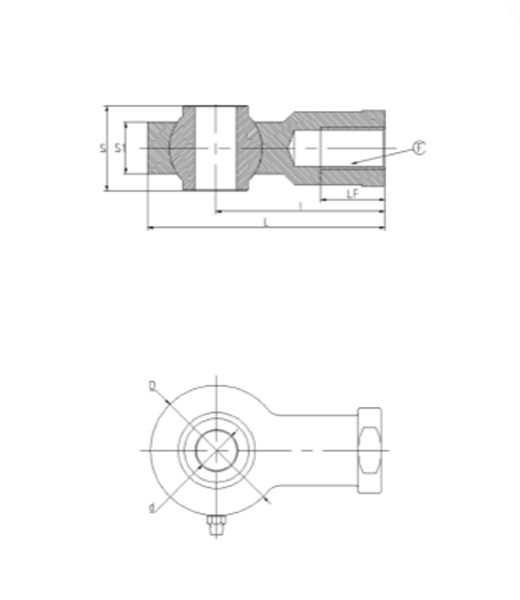

| ARTICULO | ALTURA | ANCHO | LARGO | TIPO | DIAM. | DIAM. | DIST. AL | LARGO |
| ESFERA | CAJA | ROSCA | ROSCA | AGUJERO | CAJA | CENTRO | TOTAL | |
| S | S1 | LF | F | d | D | I | L | |
| GIF 5000-1 | 13 | 10 | 24 | 6 | 31 | 46 | 62 | |
| GIF 5000-2 | 63 | 10 | 24 | 8 | 31 | 46 | 62 | |
| GIF 5000-3 | 13 | 10 | 24 | 10 | 31 | 46 | 62 | |
| GIF 5000-4 | 19 | 14 | 25 | 13 | 50 | 67 | 93 | |
| GIF 5000-5 | 23 | 14 | 25 | 16 | 50 | 67 | 93 | |
| GIF 5000-6 | 23 | 14 | 25 | 18 | 50 | 67 | 93 | |
| GIF 5000-7 | 19 | 14 | 25 | 19 | 50 | 67 | 93 | |
| GIF 5000-8 | 30 | 24 | 30 | 16 | 63 | 80 | 110 | |
| GIF 5000-9 | 53 | 24 | 30 | 16 | 63 | 80 | 110 | |
| GIF 5000-10 | 30 | 24 | 30 | 19 | 63 | 80 | 110 | |
| GIF 5000-11 | 40 | 24 | 30 | 19 | 63 | 80 | 110 | |
| GIF 5000-12 | 30 | 24 | 30 | 25 | 63 | 80 | 110 | |
| GIF 5000-13 | 31 | 24 | 42 | 25 | 63 | 80 | 120 | |
| GIF 5000-14 | 40 | 24 | 30 | 25 | 63 | 80 | 110 |
